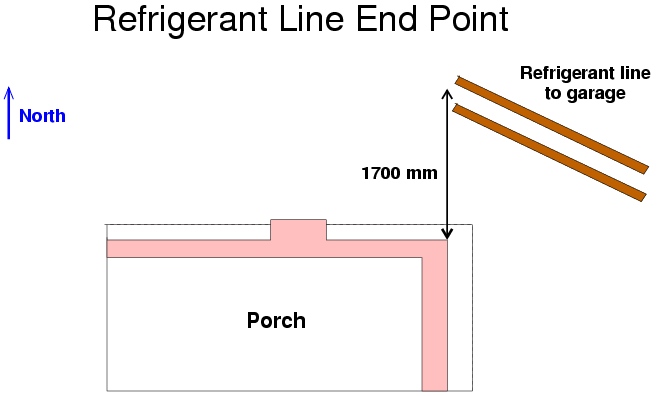

This diagram shows the location of the end of the refrigerant lines coming from the garage. Their route is approximately straight. The end point of the lines (where the heat exchanger coils would be located) is 1700mm north of the brick wall of the porch, and in line with the eastern side wall of the porch.
